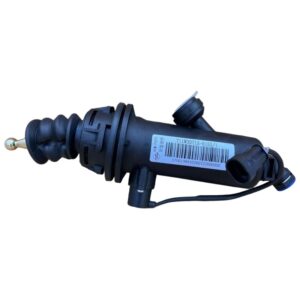

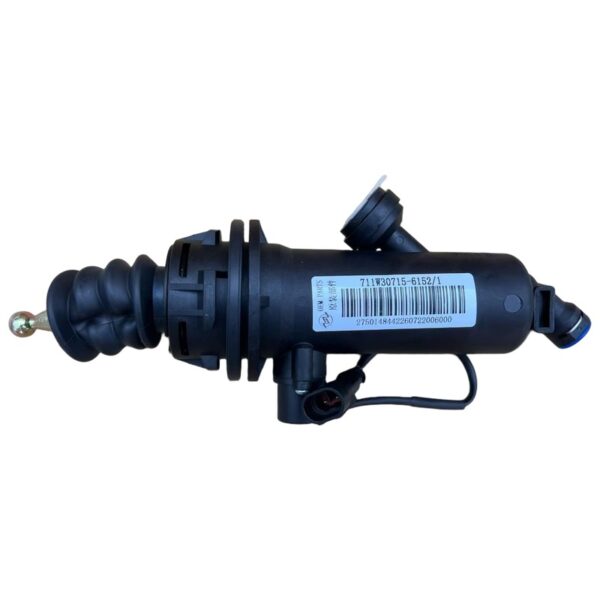

Clutch Master Cylinder 711W30715-6152 HOWO T5G SITRAK C7H

Clutch master cylinder 711W30715-6152 is the hydraulic control unit of the clutch system for Sinotruk HOWO T5G and SITRAK C7H heavy-duty trucks. Mounted at the clutch pedal, it converts pedal movement into hydraulic pressure that actuates the clutch slave cylinder, delivering smooth clutch separation and precise gear engagement. A worn master cylinder typically shows up as a soft or spongy pedal, difficulty shifting, fluid leakage near the firewall, or the pedal sinking to the floor. This replacement unit matches original factory drawing standards: aluminum alloy housing with anodized corrosion protection, precision-machined piston bore, high-temperature rubber seals, integrated fluid port and pre-wired connector, with the push rod and dust boot included. Mounting holes, pipeline interface and push rod position are identical to the original part, so replacement is direct without modification.

Key Features
– Part number: 711W30715-6152 (also stamped 711W30715-6152/1 on the unit label)
– Application: Sinotruk HOWO T5G, SITRAK C7H / C5H clutch hydraulic system
– Function: converts clutch pedal force into hydraulic pressure for clutch release
– Construction: aluminum alloy cylinder body, precision piston, high-temperature seals, wired switch connector
– Direct bolt-on replacement, no modification required

Signs of a failing clutch master cylinder
– Soft or spongy clutch pedal
– Hard shifting or gear grind
– Visible brake fluid leakage at the firewall or push rod
– Pedal slowly sinking to the floor

Ordering information
Genuine and OEM quality available. Bulk orders welcome. Send us the part number from your old unit or your truck VIN, and we will confirm compatibility before quotation.
