Donaldson P628326 Primary Air Filter RadialSeal

P628326

✓ OEM number matched confirm the part number before ordering ✓ Photographed the photos are the actual part we ship ✓ MOQ 1 piece · neutral packing ✓ Shipping worldwide from Jinan, 7–15 days

Request a Quote Bulk pricing available →

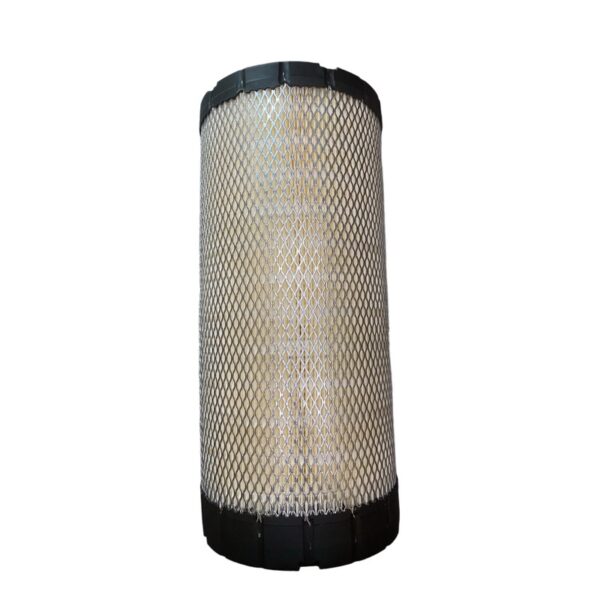

Donaldson P628326 primary engine air filter, RadialSeal™ type. The pleated cellulose media holds 99.9 percent efficiency at ISO 5011 and carries a high dust-holding capacity, which is what keeps service intervals long on dusty site and haul-road machines. The leak-resistant radial seal seats into the air cleaner housing and stays put under vibration, and the galvanized steel liners support the pleats while keeping airflow open. Fits air cleaner assemblies sized for a 159 mm outer diameter, 124 mm inner diameter, 352 mm long element.

Specifications

Part Number	P628326
Product	Engine air filter element, primary
Brand	Donaldson – RadialSeal™
Outer Diameter	159 mm (6.26 in)
Inner Diameter	124 mm (4.88 in)
Length	352 mm (13.86 in)
Type / Style	Primary / Radialseal
Media	Cellulose, Pleatloc™ pleat spacing
Efficiency	99.9 percent (ISO 5011)
Cross References	Baldwin RS5745, Fleetguard AF25960, WIX 49021, NAPA 9021, Mann C16013, HiFi SA16503
Condition	New
Fits	Confirm by part number, the old element stamp, or the dimensions above before ordering – used on Bobcat, Hyster, Ingersoll Rand, JLG and Yale equipment among others

Key Features

99.9 percent filtration efficiency at ISO 5011 – fine dust stays out of the turbo and the cylinders

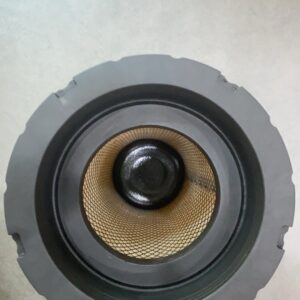

RadialSeal™ end face seals into the housing, so unfiltered air cannot sneak past the element under vibration
Galvanized steel outer and inner liners support the pleats and resist corrosion in humid storage and wet weather
Pleatloc™ spacing keeps the pleats even, which prevents media bunching and uses the whole surface area

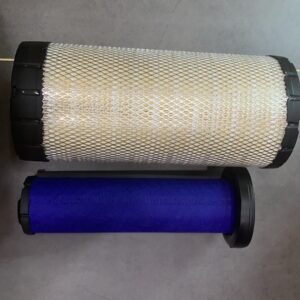

Replace with Donaldson P629466 safety element for a complete air cleaner service

Signs of Wear

Replace the primary element when the restriction indicator shows blocked, or on the service interval – whichever comes first. Do not judge by looks alone: media that appears clean can still be loaded to the restriction limit. Never brush or blow out a cellulose element for reuse beyond its rated cleanings, and always seat the radial seal evenly by pressing the element straight into the housing until it stops.

Related parts we also supply

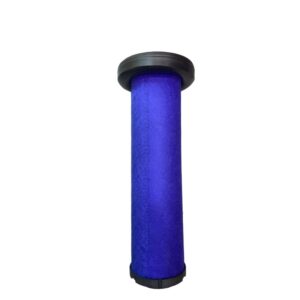

Donaldson P629466 Secondary Air Filter (Safety) RadialSeal – matching safety element
HOWO Air Compressor 202V54100-7134/1 – engine-mounted air compressor
Weichai WP7 Engine Wiring Harness 1000023185 – engine-side wiring loom

Send the part number or a photo of your old element, and we confirm fitment and quote within one working day. Genuine and OEM quality available. Bulk orders welcome.

Frequently Asked Questions

Is P628326 a direct replacement?

Donaldson P628326 primary engine air filter, RadialSeal, 159 x 124 x 352 mm, 99.9 percent efficiency at ISO 5011, cellulose media with galvanized steel liners. Crosses to Baldwin RS5745 and Fleetguard AF25960. Genuine... It replaces the OEM number directly for heavy truck and equipment applications (send your VIN or a photo of the old part and we will confirm). Share your chassis number and we will verify the match before shipment.

Can you supply P628326 in OEM quality?

Yes. OEM and original options can both be quoted, plus a cost-effective aftermarket alternative. Every option is checked against the OEM number before dispatch.

Do you have a minimum order quantity for P628326?

MOQ is 1 piece. Stock is dispatched in 2-3 working days, and for out-of-stock items we confirm a firm lead time (usually 5-10 working days) before you pay.

Can P628326 be sent by air express?

Yes - air express is available for urgent orders, with sea or rail freight for larger quantities. You receive inspection photos before dispatch and tracking after pickup.
