SINOTRUK HOWO HW50 Power Take-Off Assembly WG9700290010

WG9700290010

✓ OEM number matched confirm the part number before ordering ✓ Photographed the photos are the actual part we ship ✓ MOQ 1 piece · neutral packing ✓ Shipping worldwide from Jinan, 7–15 days

Request a Quote Bulk pricing available →

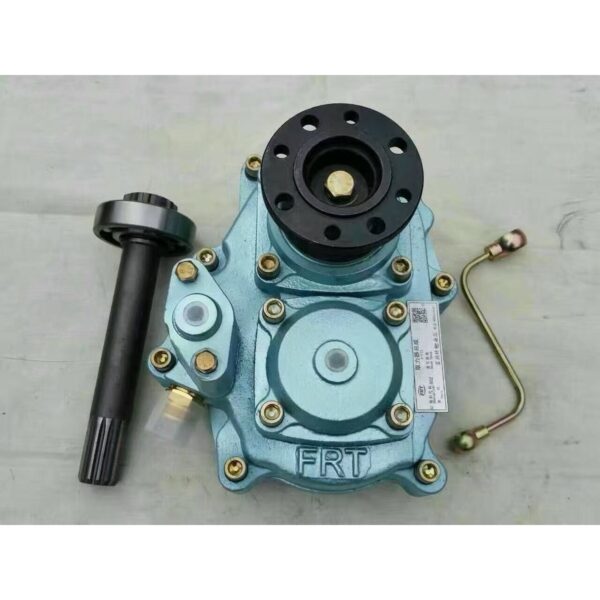

The WG9700290010 is the HW50 power take-off (PTO) assembly used on SINOTRUK HOWO trucks with HW15710 / HW19710 series gearboxes. Mounted on the rear bottom right of the gearbox, it takes power from the mainshaft gear and drives the dump-truck hydraulic pump through a FAST-type companion flange. This is the assembly version – PTO unit plus output shaft – ready to bolt on.

Specifications

Item	Detail
Part Number	WG9700290010 (former AZ9700290010, Datong gearbox ref. WG97002900101)
Assembly	HW50 PTO power take-off
Total ratio	0.924 direct / 0.694 overdrive
Rated power	80 kW
Max. output torque	500 N.m
Output rotation	Same as engine
Output interface	FAST type companion flange (spigot 55f7 x 5, 4-8.5 holes / 80 x 50)
Mounting position	Gearbox rear lower right, 177 mm interface distance
Indicator switch	STEYR type, M10 x 1
Fits gearbox	HW15710 / HW19710 (HW series)

Key Features

Genuine SINOTRUK HW50 PTO, cast FRT housing as supplied on HW series turnover.
0.924 direct ratio keeps hydraulic pump speed close to engine speed – ideal for tipping and mixer duty.
Pneumatic shift with STEYR type indicator switch: fast engagement, clean disengagement under load.
Sold complete with output shaft (spline) and lubrication pipe, so no extra shaft sourcing needed.

Signs of Wear – When to Replace

Hydraulic pump speed drops or the tipper body lifts slowly when the PTO is engaged.
Grinding or whine from the PTO housing when engaging with the engine running.
Oil leaking from the output shaft seal or the housing joint.
PTO will not engage or keeps jumping out – worn shift fork or gear dogs.

See also our other transmission and gearbox parts, including FAST gearbox gears and clutch master cylinders. PTO air control cylinder and shift flexible shaft can be quoted together on request.

Ordering

Quote part number WG9700290010 plus your gearbox model (e.g. HW19710) and vehicle model – we confirm compatibility and reply within 12 hours with photos of the actual stock.

Genuine and OEM quality available. Bulk orders welcome.

Frequently Asked Questions

Which trucks or machines use WG9700290010?

HW50 PTO assembly WG9700290010 for SINOTRUK HOWO HW15710 / HW19710 gearboxes - 500 Nm output, FAST flange, rear-bottom right mounting. Air-shift control, complete with output shaft. In stock, worldwide shipping. Fits Sinotruk HOWO heavy trucks. If you are unsure about the application, send the old part number or a nameplate photo and we will cross-check it for you.

What quality options are available for WG9700290010?

We stock several quality grades for this part - original, OEM and a tested aftermarket version. Send us your target price and we will propose the closest option.

How fast can you ship WG9700290010?

Most orders for this part ship within 2-3 working days from stock. If it needs sourcing we tell you the exact date in the quotation - typically 5-10 working days.

What shipping methods do you use for WG9700290010?

We ship by air express for urgent needs and by sea or rail for volume orders. Packing photos and the tracking number are sent as soon as the goods leave our warehouse.
