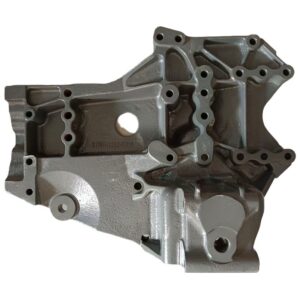

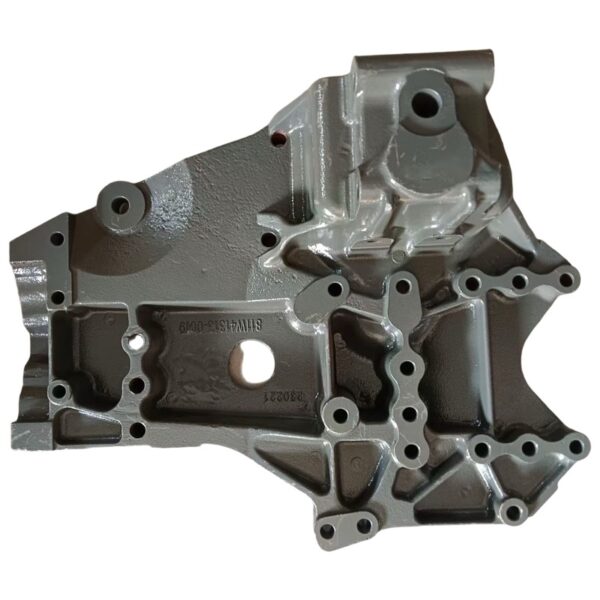

Sitrak C7H Right Combination Bracket 811W41313-0018

The 811W41313-0018 right-side combination bracket is a genuine SINOTRUK chassis mounting bracket for Sitrak C7H trucks (also fits HOWO T7H and A7 series with the standard 850 mm frame width). Installed at the mid-chassis position on the right frame rail, it replaces up to three separate brackets by supporting air dryer reservoirs, ABS valve units, electrical junction boxes and other pneumatic components.

– OEM No.: 811W41313-0018 (left-side counterpart: 811W41313-0019)
– Application: Sitrak C7H 4×2 / 6×4 / 8×4 tractors and rigid trucks (2013–present), HOWO T7H, A7
– Position: right side, mid-chassis (2nd–3rd crossmember zone)
– Mounting: 4 chassis bolts (M12 grade 10.9, torque 200 Nm) + 6 M8 threaded holes (torque 25 Nm)

Cast from high-strength steel with a corrosion-protective coating for chassis-underbody service. Direct bolt-on replacement — no drilling or welding required. Brand-new, 12-month warranty, in stock for worldwide shipping. Request a quote for the best export price.
