WABCO Foot Brake Valve 4613152670 WG9000360520/2 – Original WABCO for Sinotruk HOWO

WABCO Foot Brake Valve 4613152670 (WG9000360520/1, /2) – Original WABCO Unit for Sinotruk HOWO

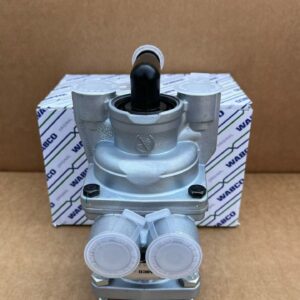

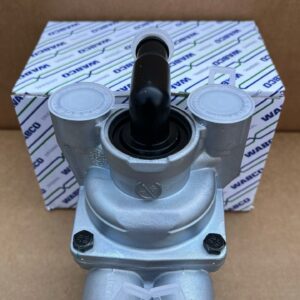

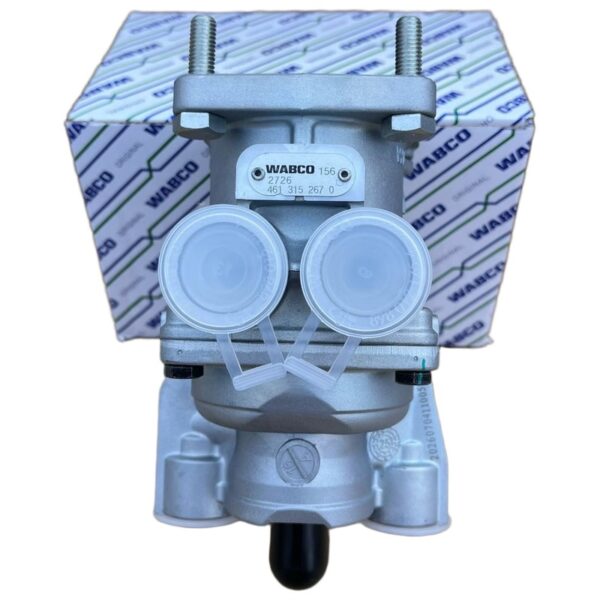

This is an original WABCO dual-circuit foot brake valve (treadle valve), supplied in the factory WABCO carton shown in the photos. It is the brake master control valve fitted to Sinotruk HOWO trucks, carrying both the WABCO number 4613152670 and the Sinotruk part numbers WG9000360520/1 and WG9000360520/2.

The valve sits at the start of the whole air brake system: the pedal stroke it converts into pressure decides how every axle of the truck brakes. A worn treadle valve shows up as a spongy or delayed pedal, uneven braking between circuits, or air leaking from the exhaust port with the pedal released. Because it is a dual-circuit valve, one circuit still delivers braking pressure if the other fails – which is why an original-specification replacement matters here more than on most parts.

Specifications:
– Part Number: 4613152670
– Cross references: WG9000360520/1, WG9000360520/2 (WG90003605202), Beiben 520 431 02 05, Dongfeng 4613152670
– Type: Dual-circuit foot brake valve (treadle control)
– Max working pressure: 12 bar
– Predominance pressure: 0.5 bar
– Ports: 4 x M22 x 1.5
– Mounting: 61 x 61 mm hole spacing, 4 x M8 bolts
– Temperature range: -40 C to +80 C
– Weight: approx. 1.22 kg
– Application: Sinotruk HOWO (CNHTC), also listed for Beiben and Dongfeng trucks and buses
– Condition: New, original WABCO (factory packing)

Confirm the cross reference on your old valve before ordering – WG9000360520/1 and /2 variants exist. Send us a photo of the nameplate if you are unsure.
