HOWO Truck Cranks but Won’t Start? Check These in Order

What “cranks but won’t start” means

The engine turns over at normal speed, but it never fires. Good news: the starter and the batteries are usually fine. The engine is only missing one of two things — either the ECU is not telling the injectors to spray, or the fuel pressure is too low. Find which one, and the fix is often quick and cheap.

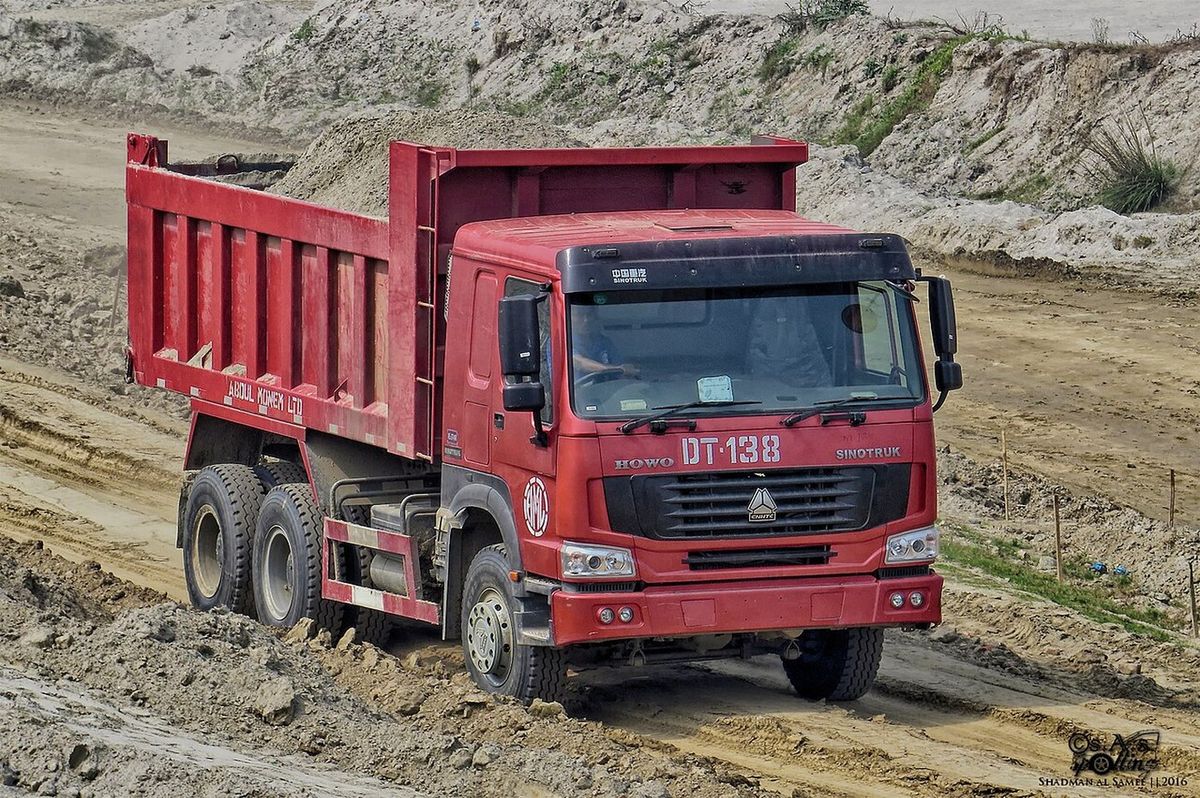

HOWO trucks at work — photo: Shadman Samee / Wikimedia Commons, CC BY-SA 2.0

First: the two free checks

1. Battery power. While cranking, the system must hold about 24 V. Weak batteries make the ECU shut down, and the truck looks exactly like one with a dead sensor.

2. Fault codes. Read them from the dash display or a diagnostic tool. A no-start almost always leaves a code, and the code points straight at the problem. Never guess parts by price — that is how a small repair becomes a big one.

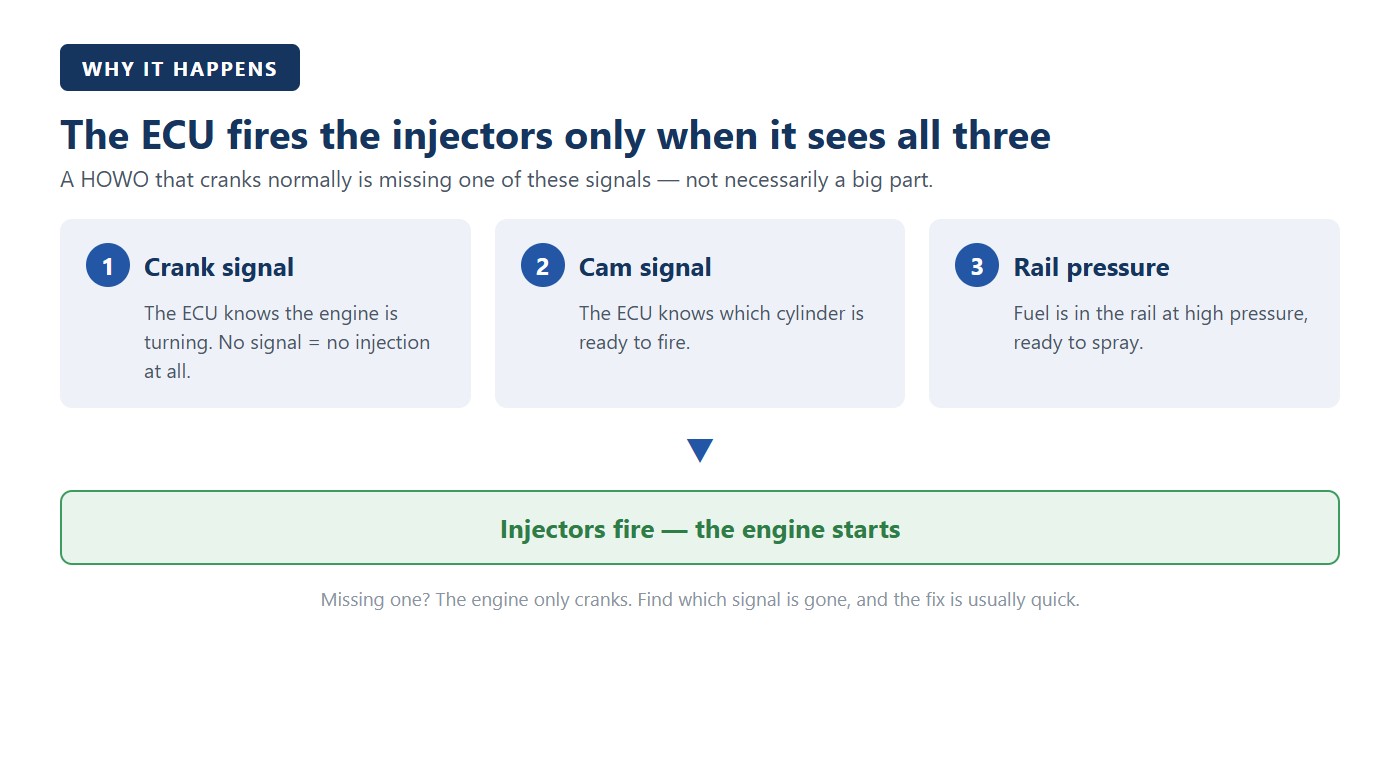

The three signals the ECU needs

1. Crank signal — the usual suspect. The crankshaft speed sensor R61540090008 fails most often. No signal means no injection at all. Check the wiring near the bell housing, the sensor gap, and metal dust on the sensor tip before you order a new one.

2. Cam signal. A lost cam signal gives long cranking and a rough first start, often when the engine is hot. The camshaft speed sensor 094040-0300 is a fast-moving stock item for us.

3. Rail pressure. Watch live data while a partner cranks. If rail pressure stays near zero, check the fuel side: air leaks, a clogged fuel filter VG1092080055, water in the separator, or the hand pump. The rail pressure sensor 499000-6160 itself is rarely the cause. And after any filter change — bleed the system. Many “won’t start after service” calls are just air in the lines.

Two switches people forget

• The throttle pedal. If the pedal gives a wrong idle signal, the ECU can refuse to start. Test it with a multimeter before you replace the electronic throttle WG9625570002.
• The neutral switch. Some trucks will not crank without a confirmed neutral. A worn neutral switch 199012710041 is a two-minute check that can save an hour.

Leave the injectors for last

Injectors are the most expensive parts in this chain, and they are almost never the cause. The ECU fires them only after it sees all three signals above. New injectors will not fix a missing signal.

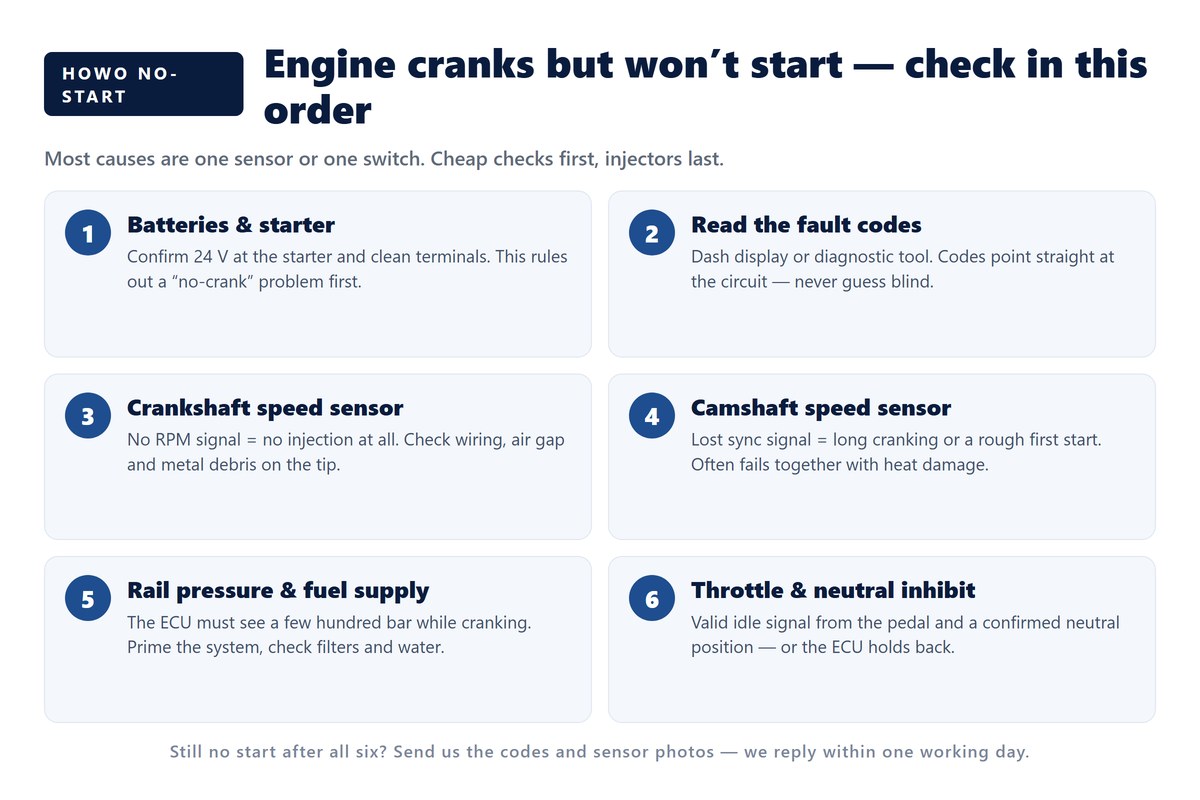

The checklist in one picture

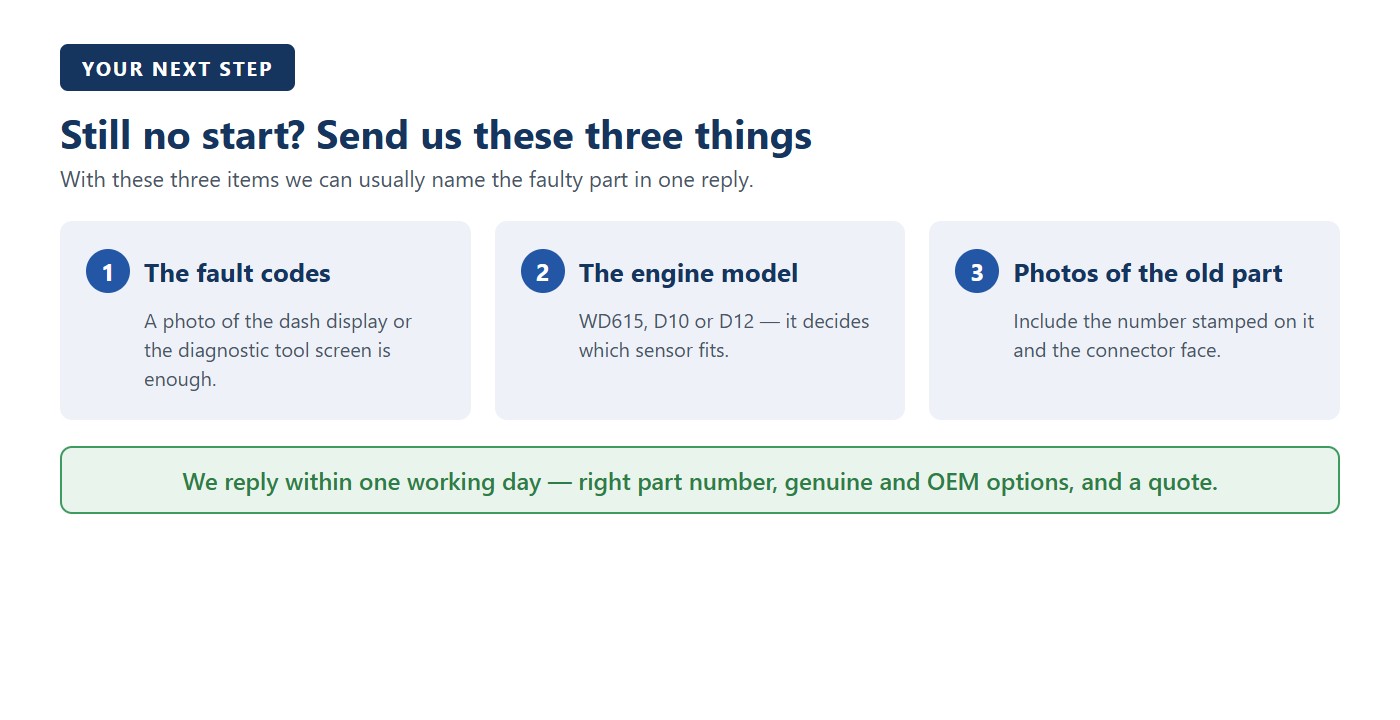

Still no start? Send us three things

Send the codes, the engine model and the photos through our inquiry page. We will confirm the correct part number and quote genuine and OEM options — usually within one working day. Not sure about the numbers? Our guide to reading HOWO part numbers explains the WG, AZ and VG prefixes in plain words.
